8 Note Tune Player

Home > Circuits > Sound/Radio > 8 Note Tune Player

Author	Views	Views Today	Rank	Comments
	143,302	3		12

This neat little circuit can play 8 note tunes at any speed you want. You select the notes with 8 trim pots. The speed in selected through a ninth pot. The circuit draws very little power and can be powered by a 9 volt battery, with the addition of a 7805 regulator to power the TTL logic used.

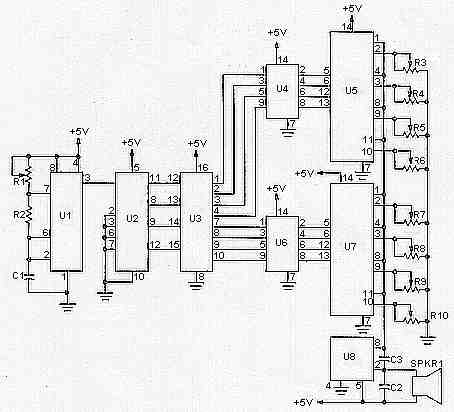

Schematic

Parts

Part	Total Qty.	Description	Substitutions
R1	1	10K Trim Pot
R2	1	1K 1/4 W Resistor
R3, R4, R5, R6, R7, R8, R9, R10	8	500 Ohm Trim Pot
C1, C3	2	10uF 12V Electrolytic Capacitor
C2	1	1uF 12V Electrolytic Capacitor
U1	1	555 Timer
U2	1	7490 Binary Counter	74LS90, 74HC90
U3	1	7445 BCD To Decimal Decoder	74LS45, 74HC45
U4, U6	2	7404 Hex Inverter	74LS04, 74HC04
U5, U7	2	4016 Quad Bilateral Switch
U8	1	3909 LED Flasher/Oscillator
SPKR1	1	8 Ohm 500mW Speaker
MISC	1	Board, Wire, IC Sockets

Notes

R1 controls the speed at which the notes are played. R3-R10 control the pitch of those notes.

The circuit will operate fine on a 9V battery, with the addition of a 7805 regulator to power the TTL logic used.

The missing pin on U2 is pin 14.
