 Automatic 12V lead acid battery charger		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

Bliss
New Member

Singapore
1 Posts
Posted - Jul 21 2012 :  9:33:09 PM  Show Profile  Send Bliss an AOL message  Send Bliss an ICQ Message  Click to see Bliss's MSN Messenger address  Send Bliss a Yahoo! Message  Reply with Quote


Dear sir

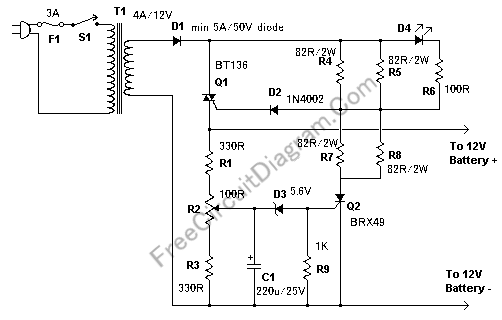

i am trying to build the battery charger according to this website,in the diagram i don't understand Q1 and Q2 the pin 1,2 and gate where/how should i connect,please advise me,thanks



http://www.aaroncake.net/circuits/charger2.asp

Download Attachment: automatic_lead_acid_battery_charger.gif
9.69 KB

Aaron Cake
Administrator

Canada
6718 Posts
Posted - Jul 28 2012 :  10:52:00 AM  Show Profile  Visit Aaron Cake's Homepage  Send Aaron Cake an ICQ Message  Send Aaron Cake a Yahoo! Message  Reply with Quote
The diagram is clear as to how the component is connected in the circuit. If you are looking for the pinout of those components, just search for their datasheets. Googling "[part number] datasheet" always works.
