Project Tina, March 9th, 2002: Prep and Turbo Mounting


Home > RX-7 > My RX-7 > Project Tina > Project Tina, March 9th, 2002: Prep and Turbo Mounting Buy Me A Coffee

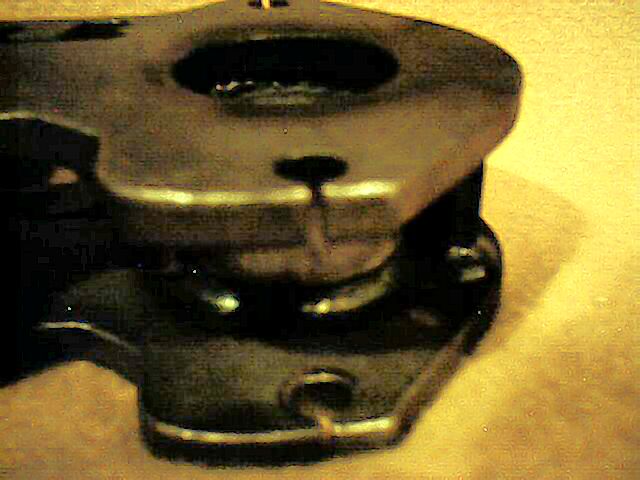

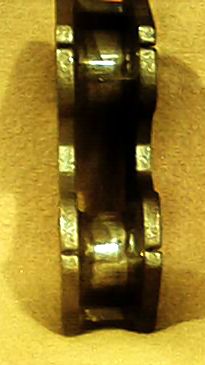

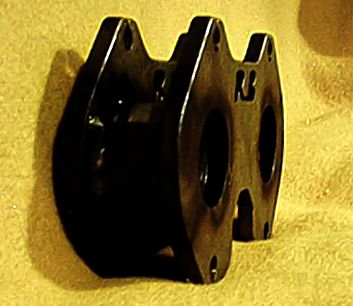

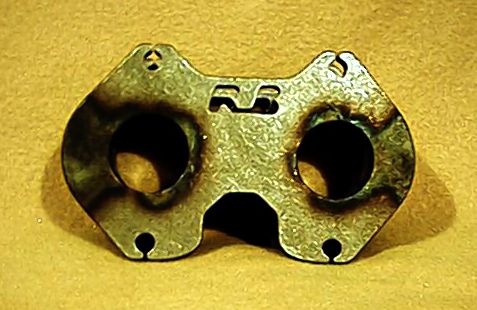

NA turbo adapter/Spacer

This adapter spaces the TII manifold out 2.5" so it clears the lower intake.

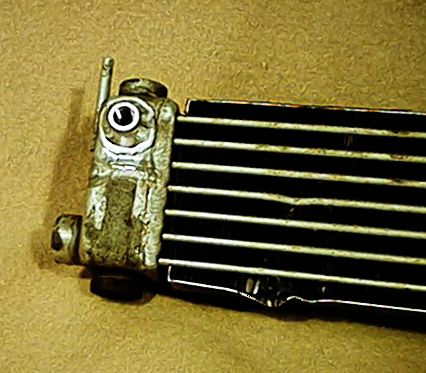

Oil cooler with bung installed for turbo oil supply

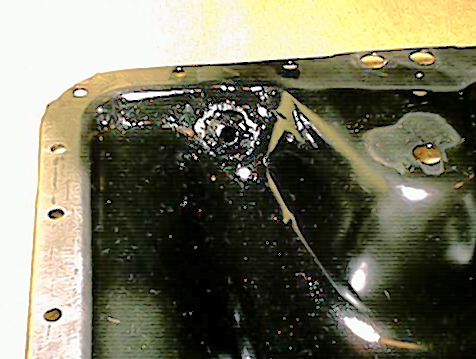

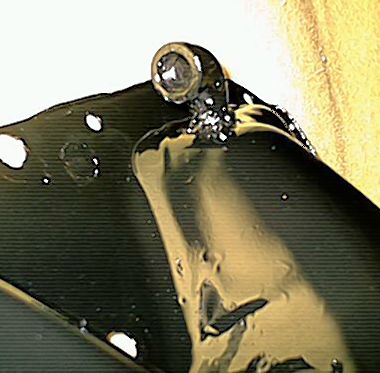

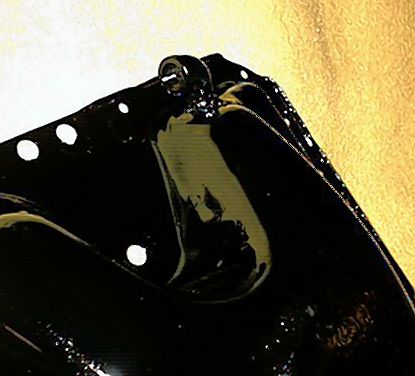

Oil pan with turbo oil drain pipe installed (don't laugh, I did that with an arc welder)

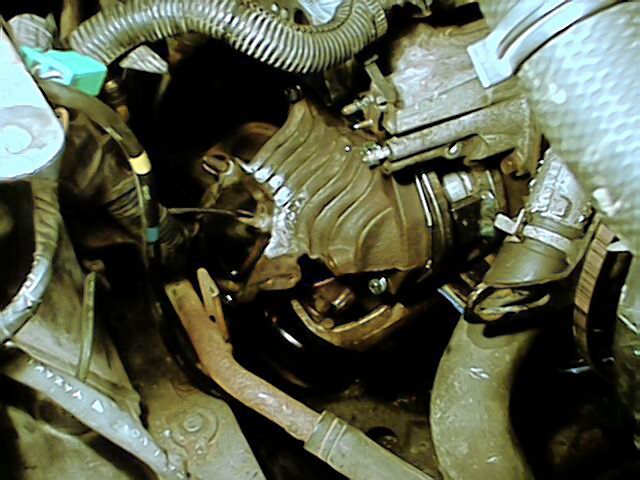

TII manifold with adapter on engine

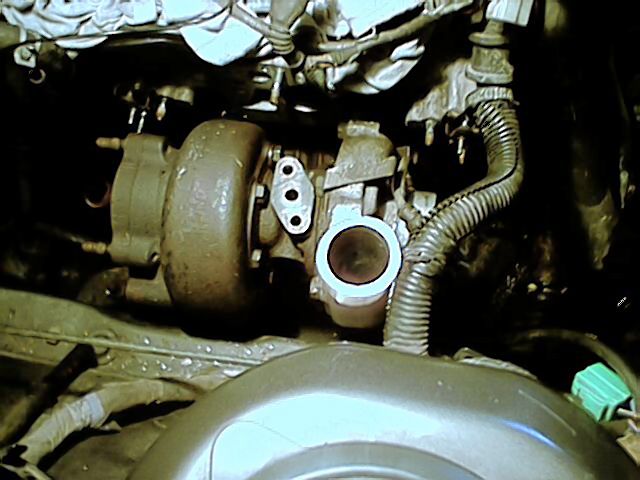

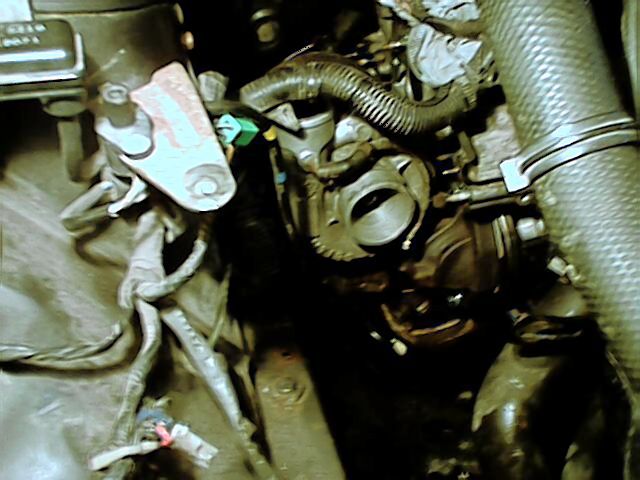

Turbo installed

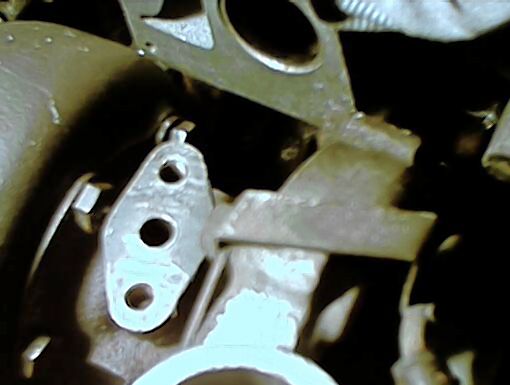

Showing how close the turbo is to lower intake

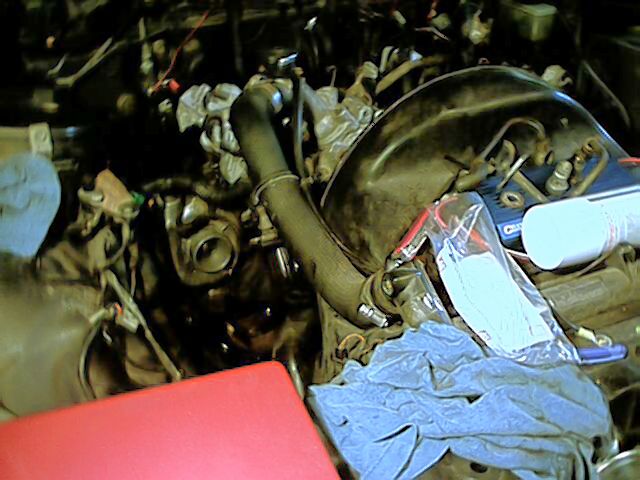

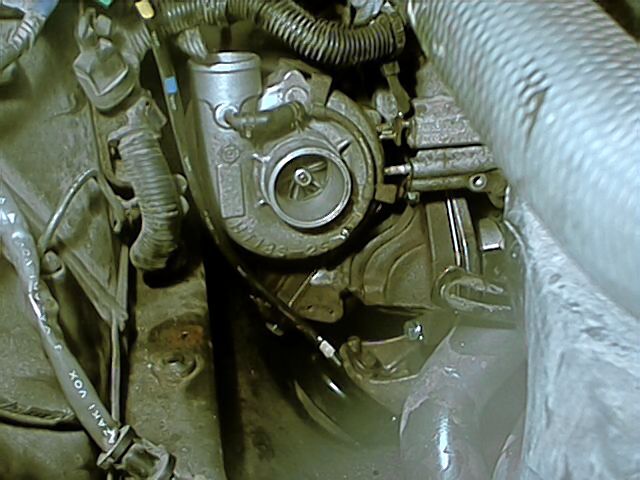

Turbo installed, various views

You will notice there is no wastegate on the turbo. It has been removed so the turbo can be test fitted. The wastegate seems to interfer with the inner fender. So, the fender will have to be....modified....with a hammer or saw to make things fit....Just didn't feel like doing that at the moment...
