Project Tina, March 9th, 2002: Prep and Turbo Mounting

Home > RX-7 > My RX-7 > Project Tina > Project Tina, March 9th, 2002: Prep and Turbo Mounting

You asked, so here they are. 32 pictures, unedited, raw and uncensored. Keep small children and pets away, view at your own risk...

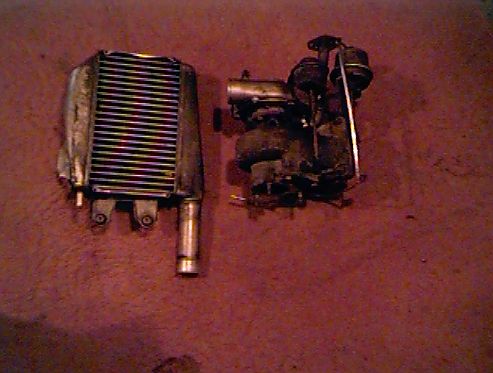

Turbo And Intercooler Before Cleaning/Modification

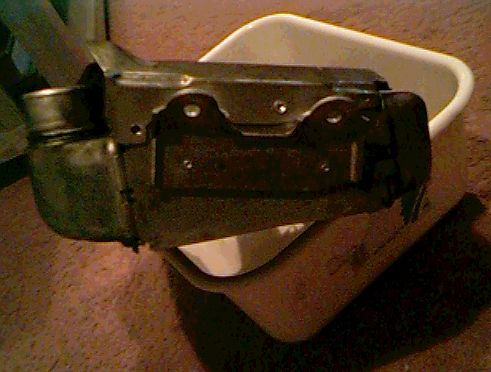

Intercooler showing rivits to be removed

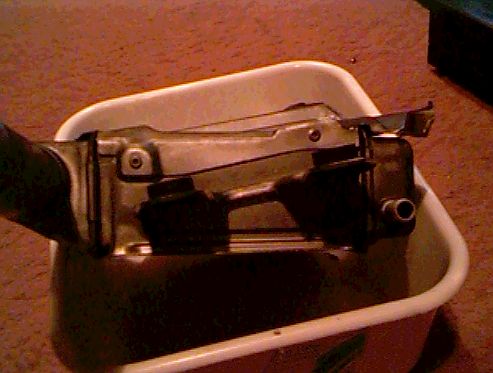

More rivits to be removed

Intercooler - backing plate removed

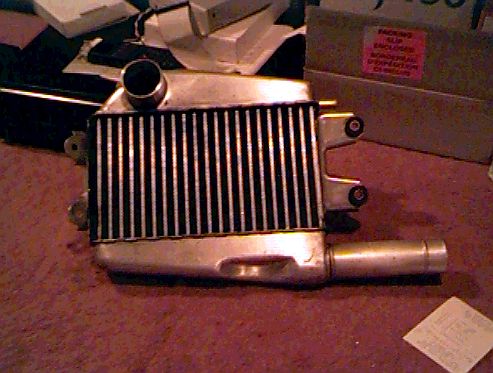

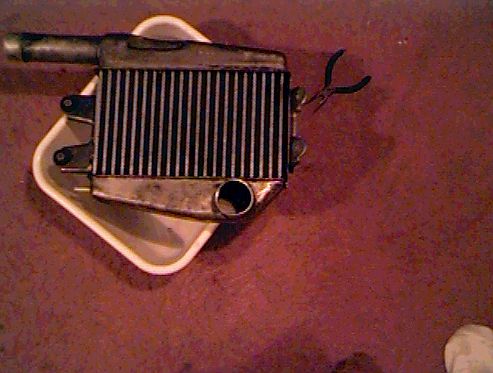

Intercooler - back plate removed and cleaned

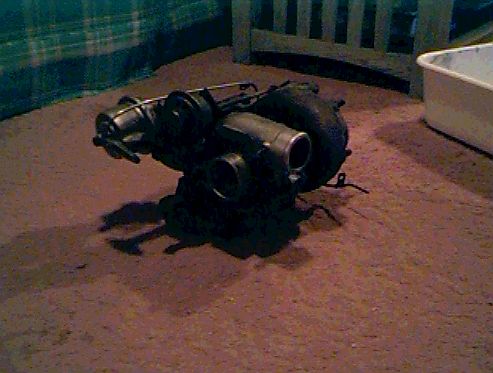

Turbo all cleaned up

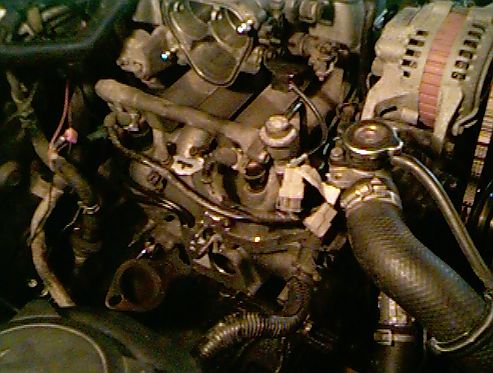

Engine - Cold start, 6 ports, ACV, exhaust manifold removed

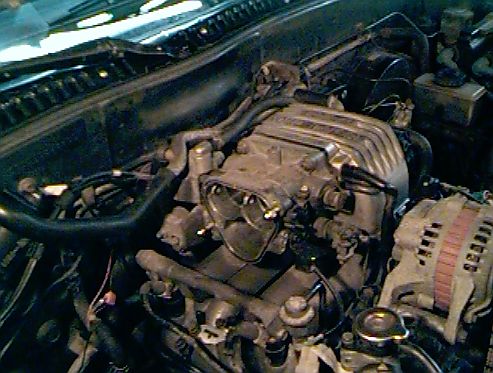

Throttle body with secondary butterflies removed (for throttle body mod)

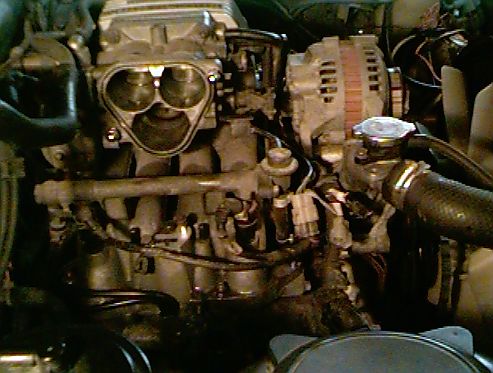

Throttle body - secondaries removed, cold start removed

Same as above

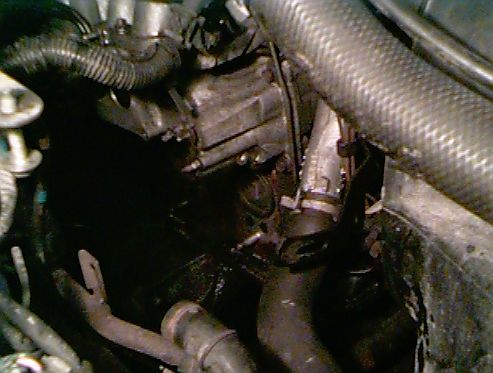

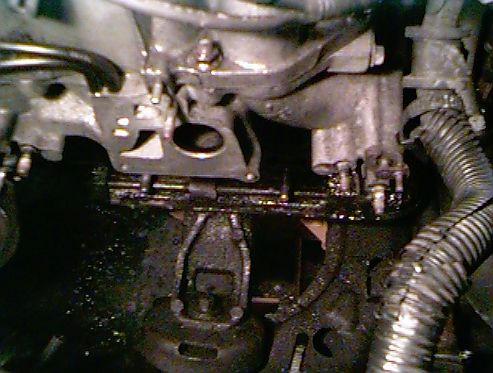

NA exhaust manifold removed (air pump removed for clarity)

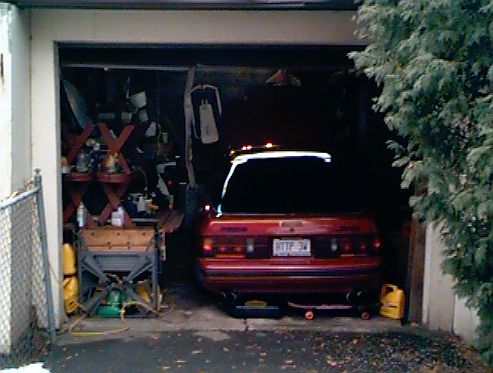

Rear of car in garage

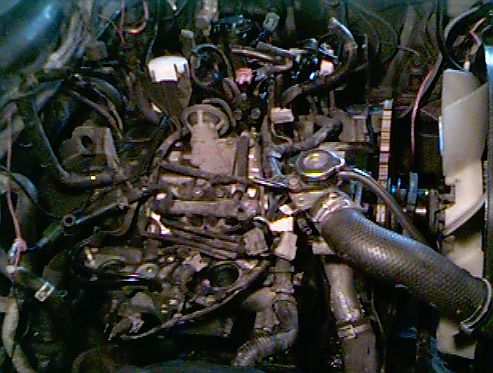

Upper intake removed

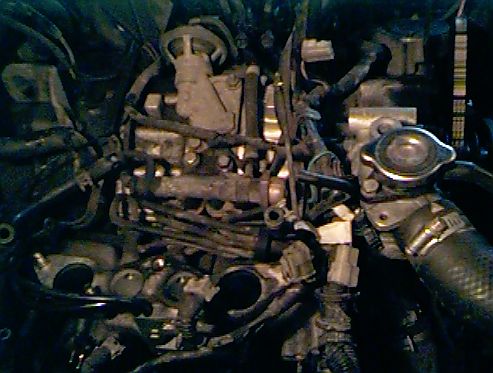

Upper intake removed still

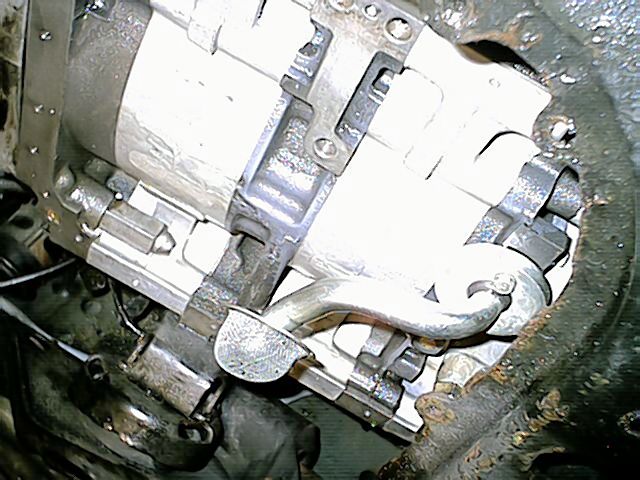

Oil Pan Removed
