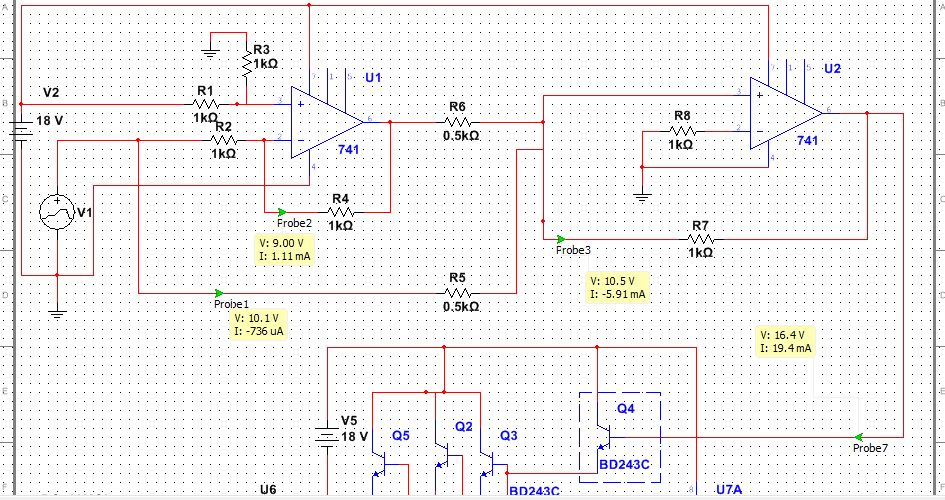

The source V1 that you see in the schematic is a varying voltage source,it's voltage varies randomly from 3.3 V to 18 V (slowly,no issue of frequency).
In the circuit, using the two op-amps & 18 V voltage source i brought the voltage to an almost constant 16-17 V.But the op-amps give small current(25 mA),so i used a power-amplifier to increase current.
But what i'm talking about in previous post is that the source V1 is not only a varying voltage source,but it also gives current in-between 4-7 A.I want to bring this current, to the base of the power-amp,so that i can use this current & decrease the current i draw from Vcc.
What i want to do finally,is to bring voltage at the o/p of the 2nd op-amp to 16-17 V which i did & also the current to 4-7 A.
I mean,like the way you do in a trans-impedance amplifier(not talking about current to voltage conversion) pass the current through the feedback paths with probe 1&probe 2 through probe 3 to output,can i make current to flow this way ???
Am I making myself clear?????
I mean now if the current were to pass through the paths with probe 1 & probe 2,then because of low-output impedance of op-amp the current flows into the output of the op-amp,rather than going forward.So i'm thinking of increasing op-amp output impedance so that current from the feedback path doesn't flow into it.Is this correct??
