 Headphone Tube Amplifier		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

Yerboogieman
Nobel Prize Winner

USA
577 Posts
Posted - Jul 17 2012 :  02:58:06 AM  Show Profile  Send Yerboogieman a Yahoo! Message  Reply with Quote

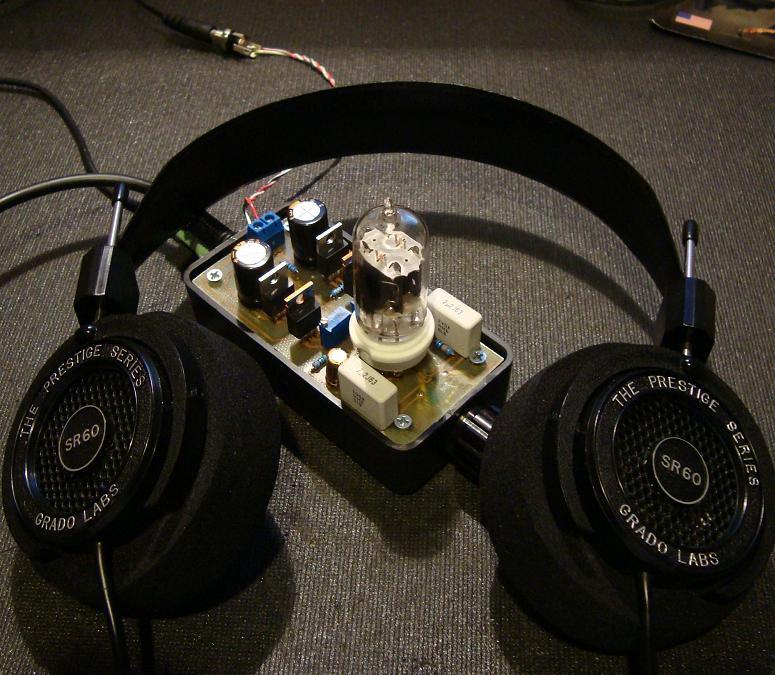

I've seen a headphone tube amplifier on the net somewhere and was wondering if anyone knew of the parts I would need and if there is a diagram floating around. Here is a picture of it.

Thanks.

(On another note, I am now a Nobel Prize Winner. Woo!)

Download Attachment: 12AU7-Tube-IRF510-Mosfet-Headphone-Amplifier.jpg
96.16 KB
If you don't have the time to do it right, when will you have the time to do it over?
Edited by - Yerboogieman on Jul 17 2012 03:02:22 AM

Aaron Cake
Administrator

Canada
6718 Posts
Posted - Jul 21 2012 :  10:27:44 AM  Show Profile  Visit Aaron Cake's Homepage  Send Aaron Cake an ICQ Message  Send Aaron Cake a Yahoo! Message  Reply with Quote
I did a quick Google for it and there seem to be plenty of schematics as well as full kits available.

Probably not a very portable device considering the 1.5V - 6V needed to light the filaments and the 45V needed to run the rest of the circuit. Hard to find 45V batteries these days (not impossible, just hard).
